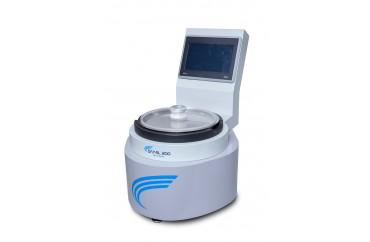

Vacuum Sieving Device - Air Jet Sieve Alpin
SAY-SL 200
SAY SL 200 Vacuum Sieving Device especially for the separation of all fine, dry particle size products
and provides the elimination analysis in determining the precise particle size distribution
is a measuring device. Sieving analysis is performed with the orientation of the panel in the device. Operator error
short sieving times, high sieving ability, reproducible sieve analysis data are obtained.
Wide analysis ranges for up to 80% faster and more efficient results than other screening methods
standard Ø 200 mm - 203 mm suitable for laboratory sieves
and PROFESSIONAL. For product quality control and sieve analysis inspection
data can be saved to our device, the data can be transferred to a computer or printer all the sieve elimination analysis data
print numerically and graphically.

Analysis range 10 µm - 4 mm

Navigation High definition

Touch screen 7 ”
Power cord m 1
Low pressure Pa 12000

Air flow rate m3 / h 25-125
Speed ​​r / min 30
Weight kg 18
Protection class IP 54
Dimensions WxHxD mm 350 x 460 x 400

Air Jet Sieving

Say-Lab SL 200 Basic Model

>> Say-Lab SL 200 Basic Model
>> Rapid analysis and evaluation
>> Manual sieving under adjustable pressure
>> 7 ”touch handy operator panel
>> Simple and convenient menu structure
>> Direct connection via interface with a compatible balance
>> RS-232C, Ethernet data units standard

Air Jet Sieving

Say-Lab SL 200 Professional Model

>> Rapid analysis and evaluation
>> Manual sieving under adjustable pressure
>> 7 ”touch handy operator panel
>> Simple and convenient menu structure
>> Direct connection via interface with a compatible balance
>> RS-232C, Ethernet data units standard
>> Adjustable vacuum pressure
>> Engine speed adjustable
>> Communication with Snowrex EJ-600
>> Printable from specified printer
>> Panel and USB storage
