ST 50 Tensile tensile tester is a model made with servo motor technology and provides high precision and efficiency. Jaw types suitable for the sample provide convenience to the user. It determines whether the materials produced are within the standard values ​​or not. All test results can be reported and stored with the appropriate software for the device. Applies to wide range of materials for tensile, compression, bending, cutting and low speed testing. Used for testing products such as metal, rubber, plastic, welding, textile, etc.

ST 50 Tensile Tensile Tester is used in industrial organizations, research and development, test institutes and training centers.

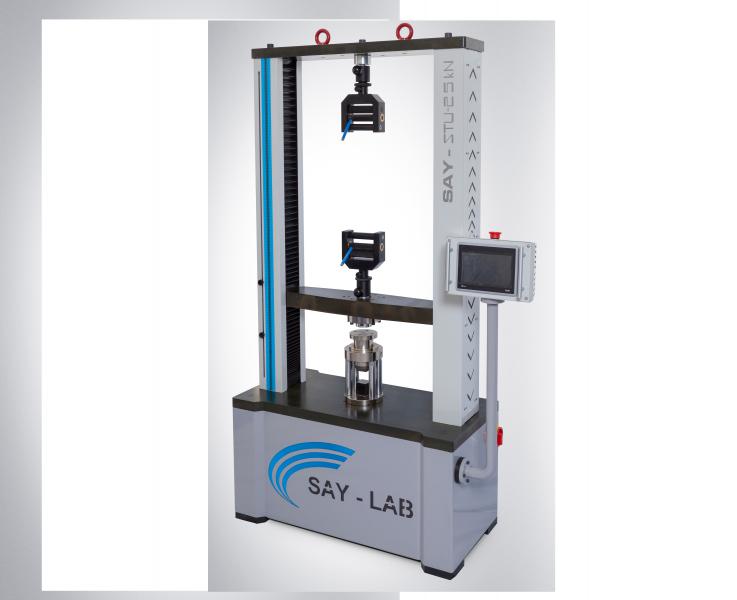

ST 50 Tensile Break Tester has double column and double cavity structure. The upper space is used for tensile testing, the lower space is used for compression and bending test.

Technicial Specifications

ModelST 50kN

Max. Load 50KN - 5000kgf

Load Accuracy ≤ ± 0.5%

Load Range: 0.2% -100% of full scale

Load Resolution 1/500000 of full scale

Screen Resolution0.01

Test Speed0.05 / 500mm / min.

Pulling Area700mm

Compression Area700mm

Test Width600mm

Electricity 220/3/50 - 380/3/50

Dimensions 900 × 500 × 1800mm

Weight320 kg
