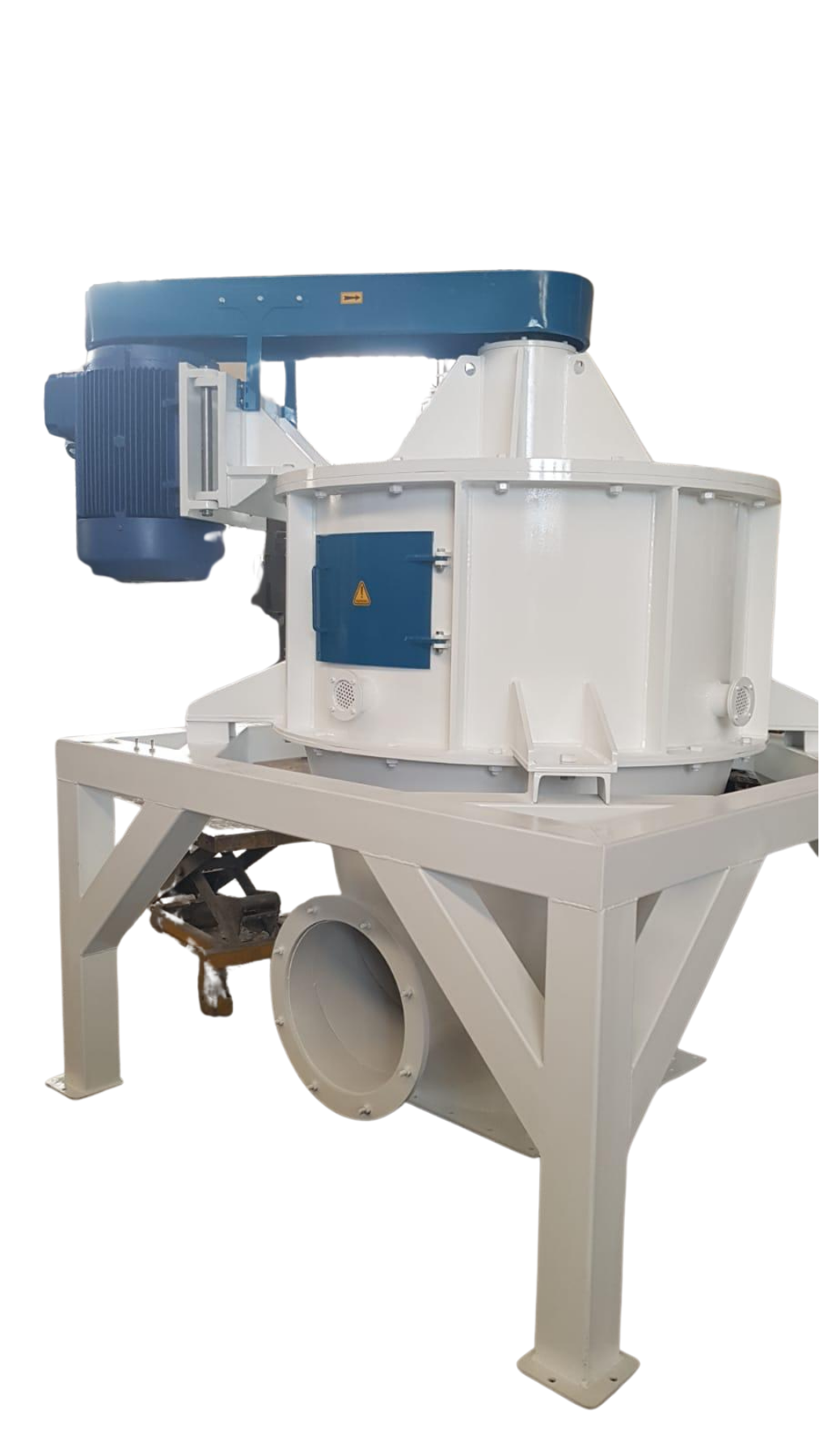

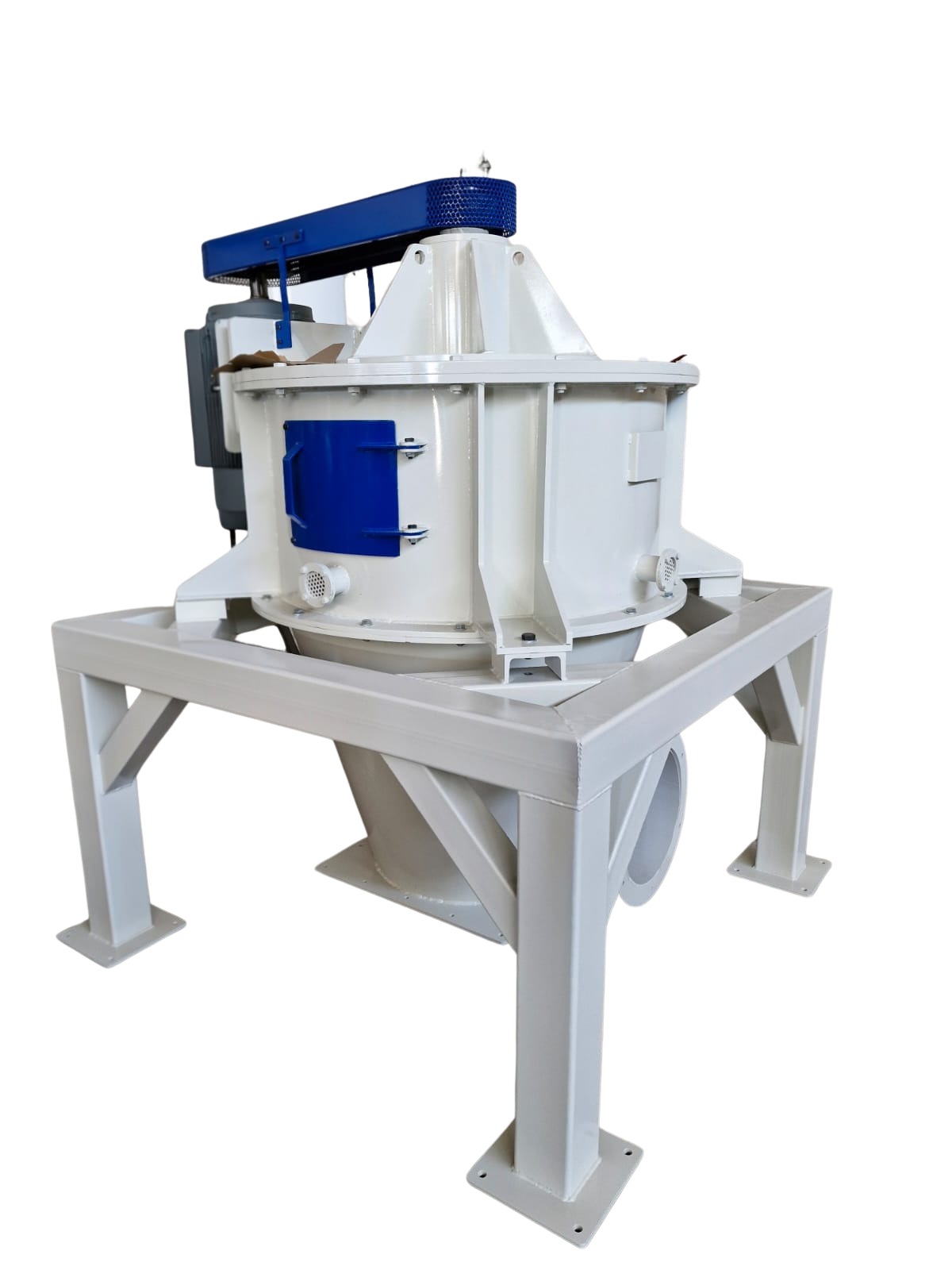

SAY-END Dynamic Separators are used to separate products of the desired particle size from the ground material. The products are classified by rotors with blades rotating at a specific speed; products that pass through the rotor blades via vacuum are directed to the dust collection system, while products that do not pass are sent to the grinding process and coarse product bunker. This cycle continues continuously during operation.

The separation point of the products can be precisely controlled by adjusting the rotor speed and suction pressure values.

SAY-END Dynamic Separators are designed to provide high efficiency and long service life, especially for classifying products with low abrasiveness.

• Motor power options: 11 kW to 75 kW
• Maximum rotor speed: 800 rpm to 4000 rpm
• Air requirement: 3,000 m³/h to 35,000 m³/h
• Product fineness options according to d97: 8 µm, 20 µm, 45 µm, and 90 µm
• Capacity range at 8 µm fineness: approx. 350 kg/h to 1,500 kg/h
• Capacity range at 20 µm fineness: approx. 700 kg/h to 10,000 kg/h
• Capacity range at 45 µm fineness: approx. 1,000 kg/h to 14,400 kg/h
• Capacity range at 90 µm fineness: approx. 2,400 kg/h to 22,000 kg/h
• Wide model options to meet different product fineness and capacity requirements
• High-efficiency separation performance suitable for fine classification applications
• Dimension options:
  • 1300 x 1500 x 575 mm / Ø169 mm
  • 1300 x 2000 x 770 mm / Ø236 mm
  • 1600 x 3000 x 1034 mm / Ø273 mm
  • 2000 x 3000 x 1150 mm / Ø355 mm
  • 2400 x 3600 x 1400 mm / Ø445 mm
