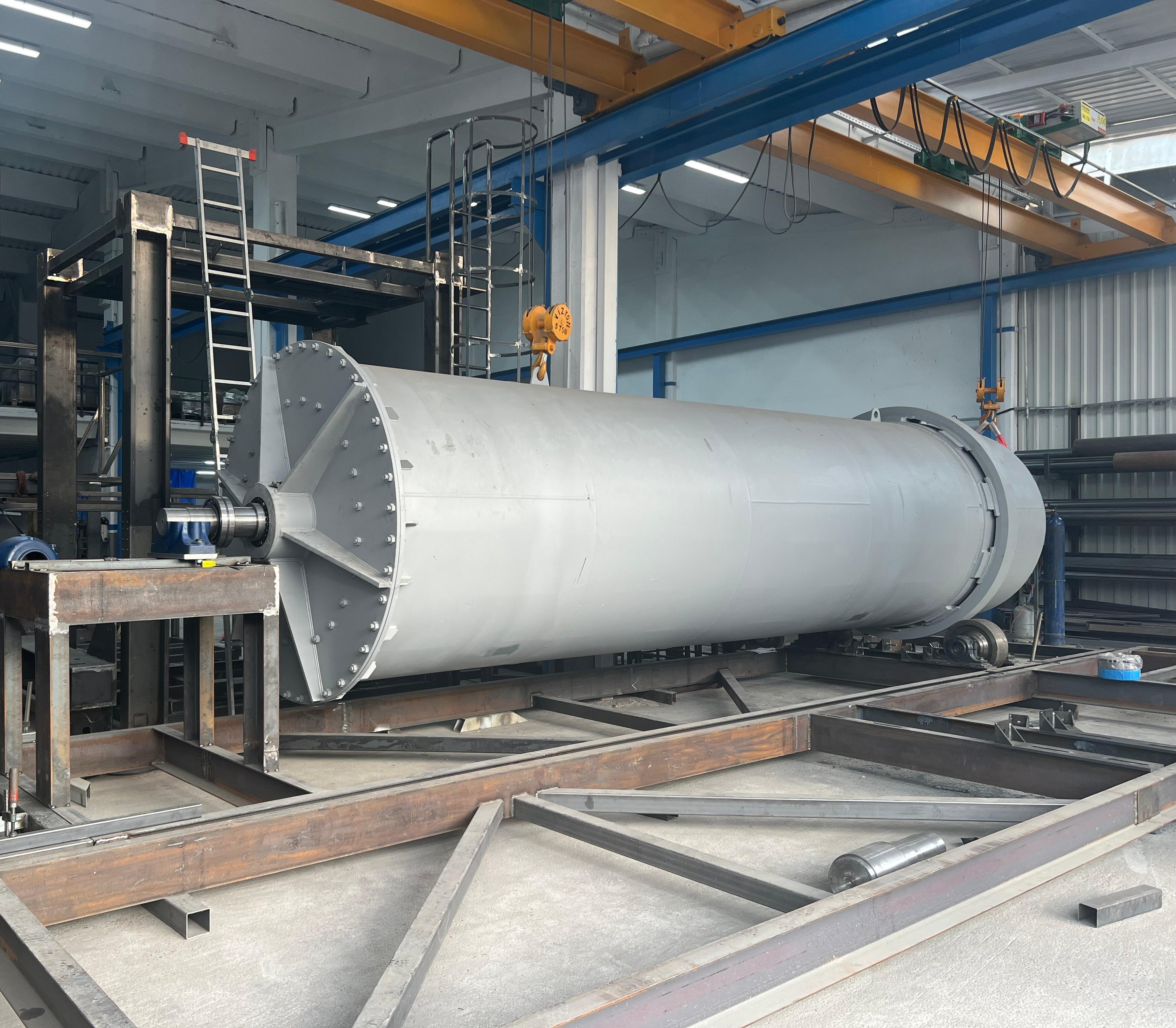

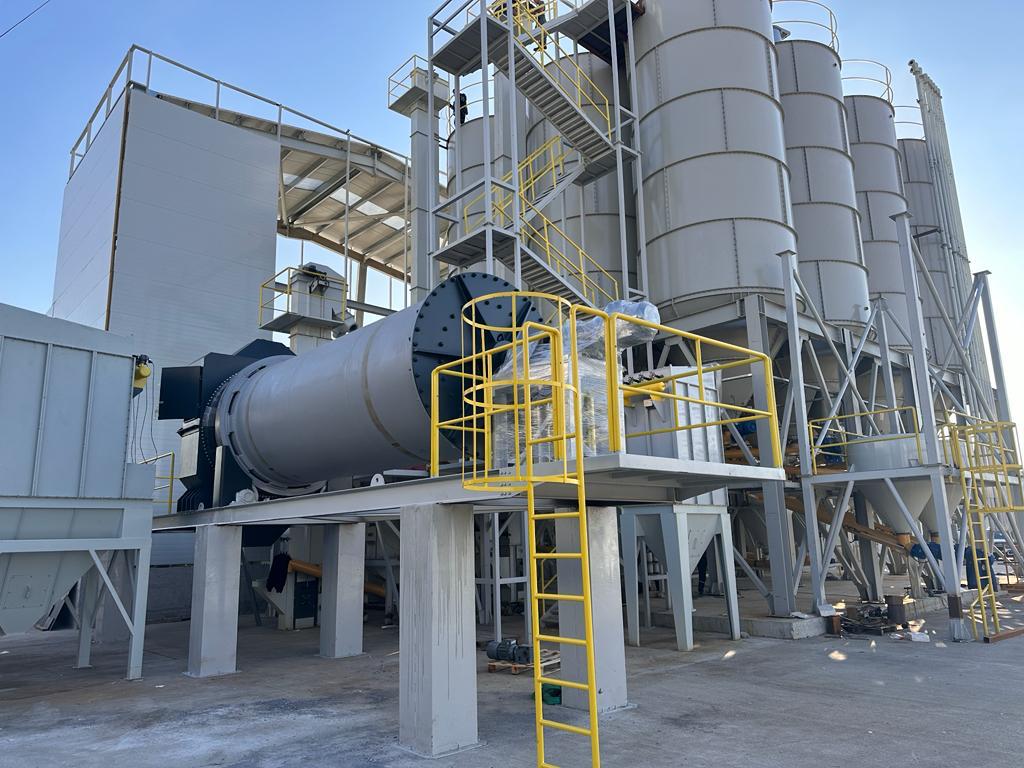

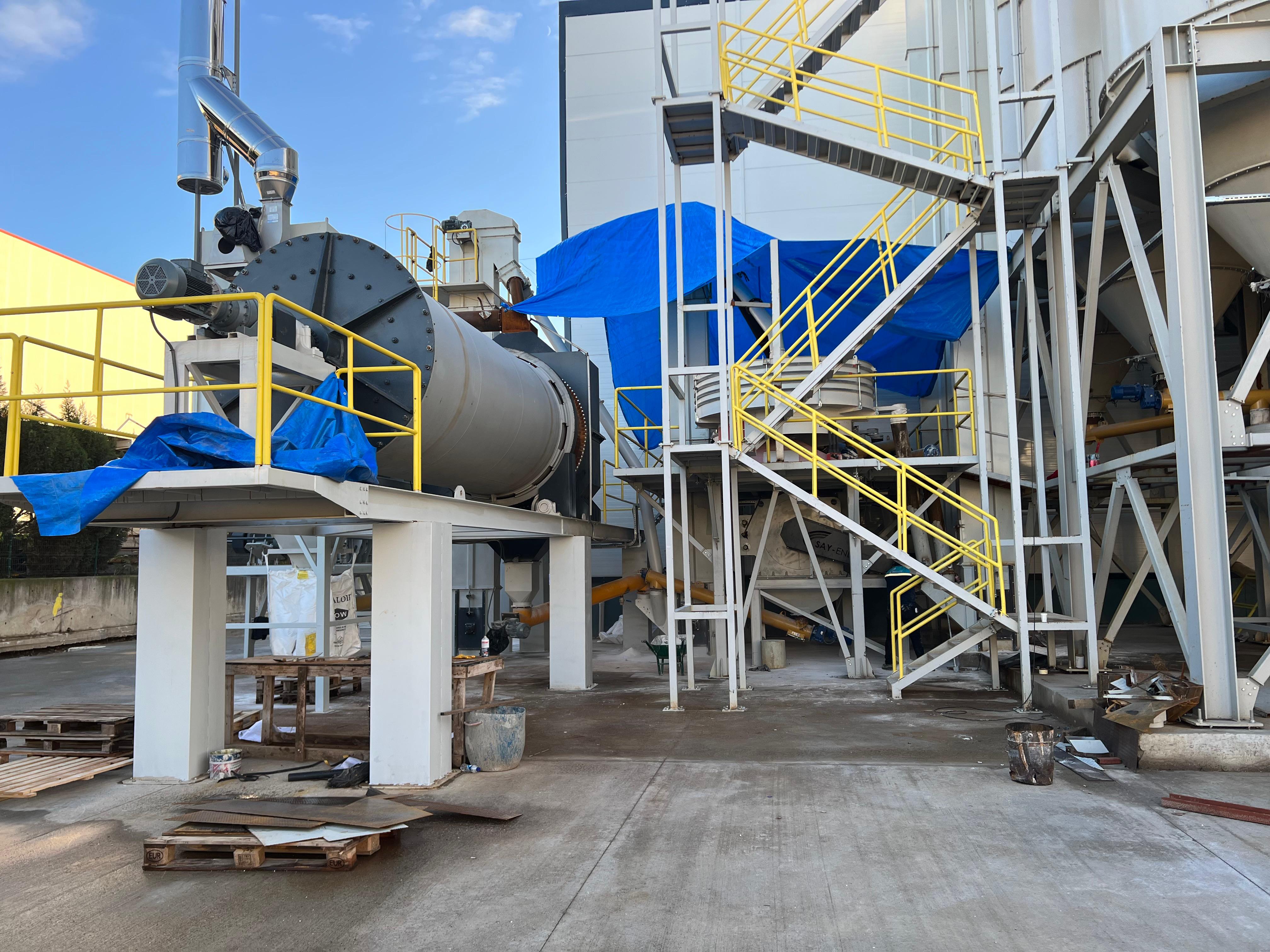

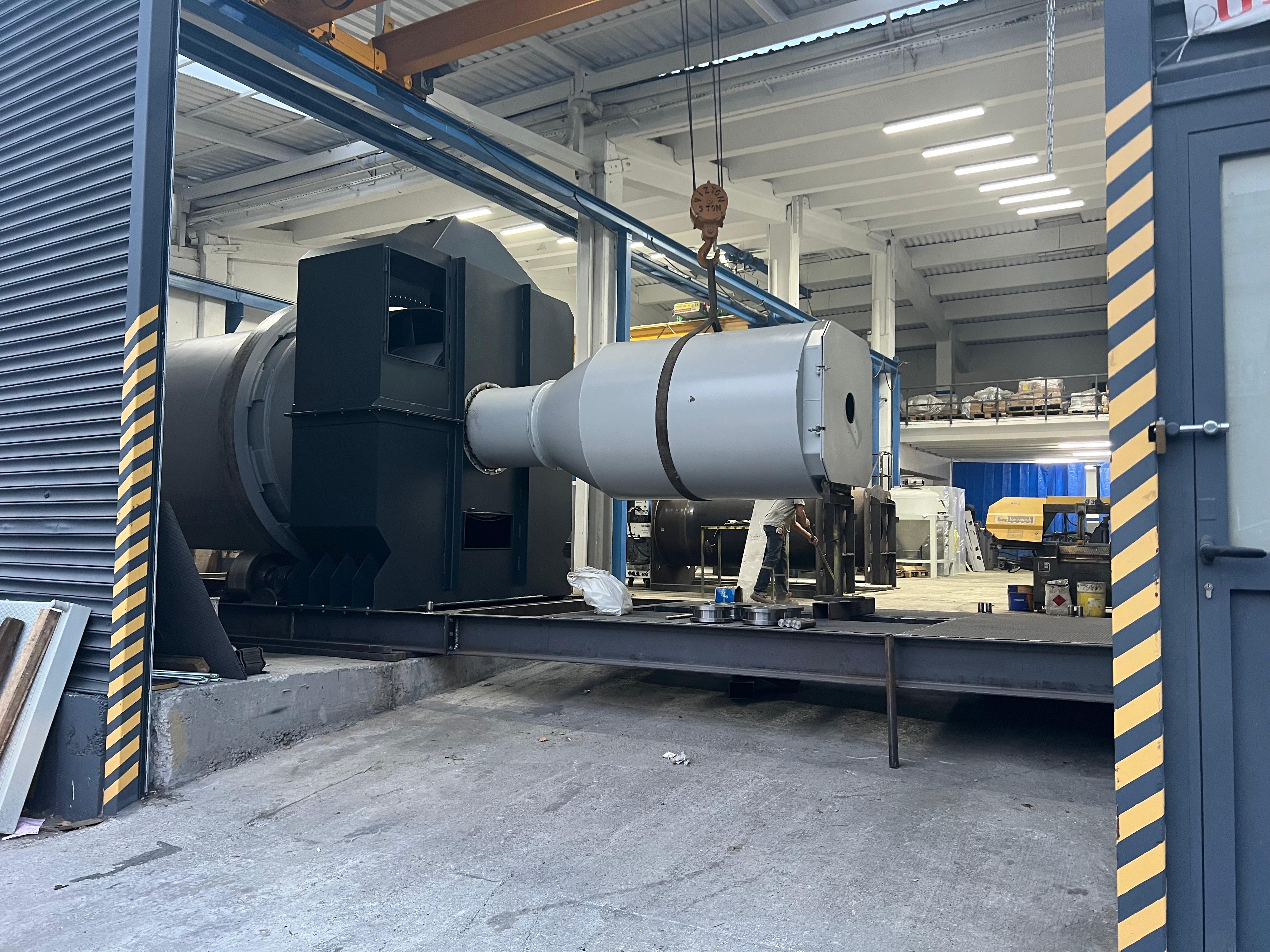

SAY-END Rotary Dryer Systems can be designed with single or double drums to meet different capacity requirements and process conditions. Operating with direct heating and parallel flow principle, these systems provide controlled, efficient, and continuous drying, especially for raw materials with fine particle sizes.

Thanks to their durable body structure, precise speed control, and project-specific auxiliary equipment options, SAY-END rotary dryers offer safe operation, consistent product quality, and high process efficiency. They are preferred as a long-lasting and reliable drying solution in chemical, gypsum, and mineral processing plants.

• Single-drum or double-drum rotary dryer options
• Dryer diameter options: Ø 1400 – Ø 2200 mm
• Direct-heated, operating on parallel flow principle
• Feeding system suitable for material size below 10 mm
• Capacity range: 10 – 50 tons/hour
• Suitable for maximum inlet moisture content of 7%
• Carbon steel body and internal blade structure
• Two-gate, directly-driven gearbox design
• Electronic frequency-controlled speed adjustment
• Mounted on steel frame and concrete columns
• Delivered with feeding chute, flue gas outlet head, discharge pendulum flap, and thermocouple set
• Motor power range: approx. 7.5 – 45 kW
