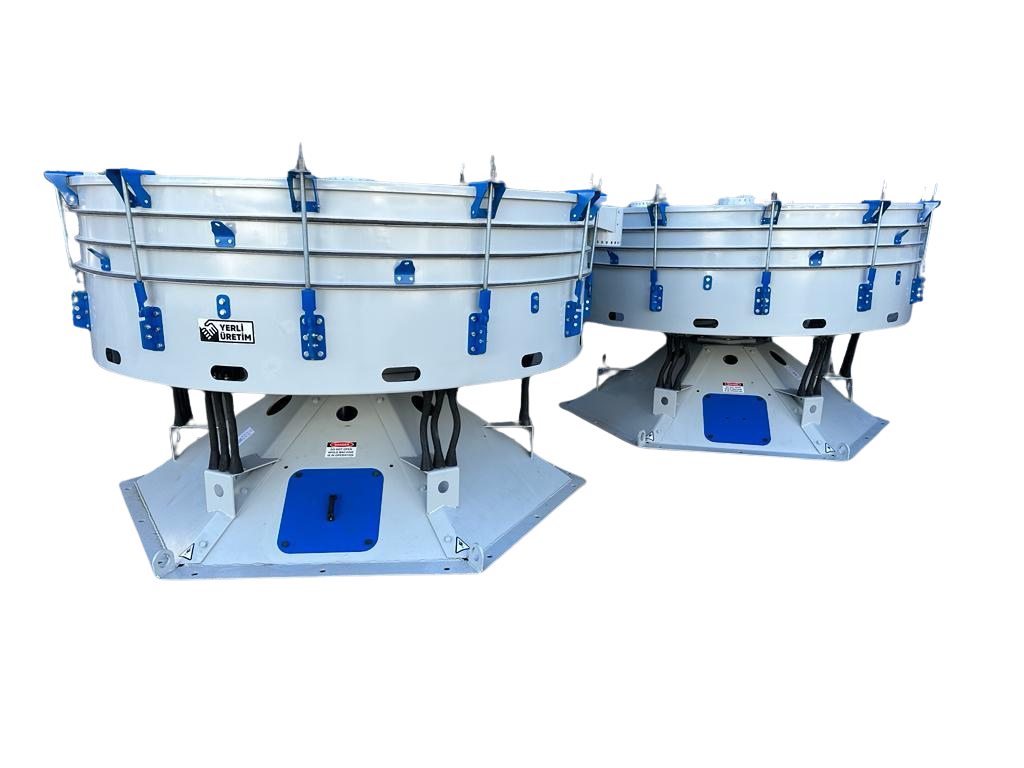

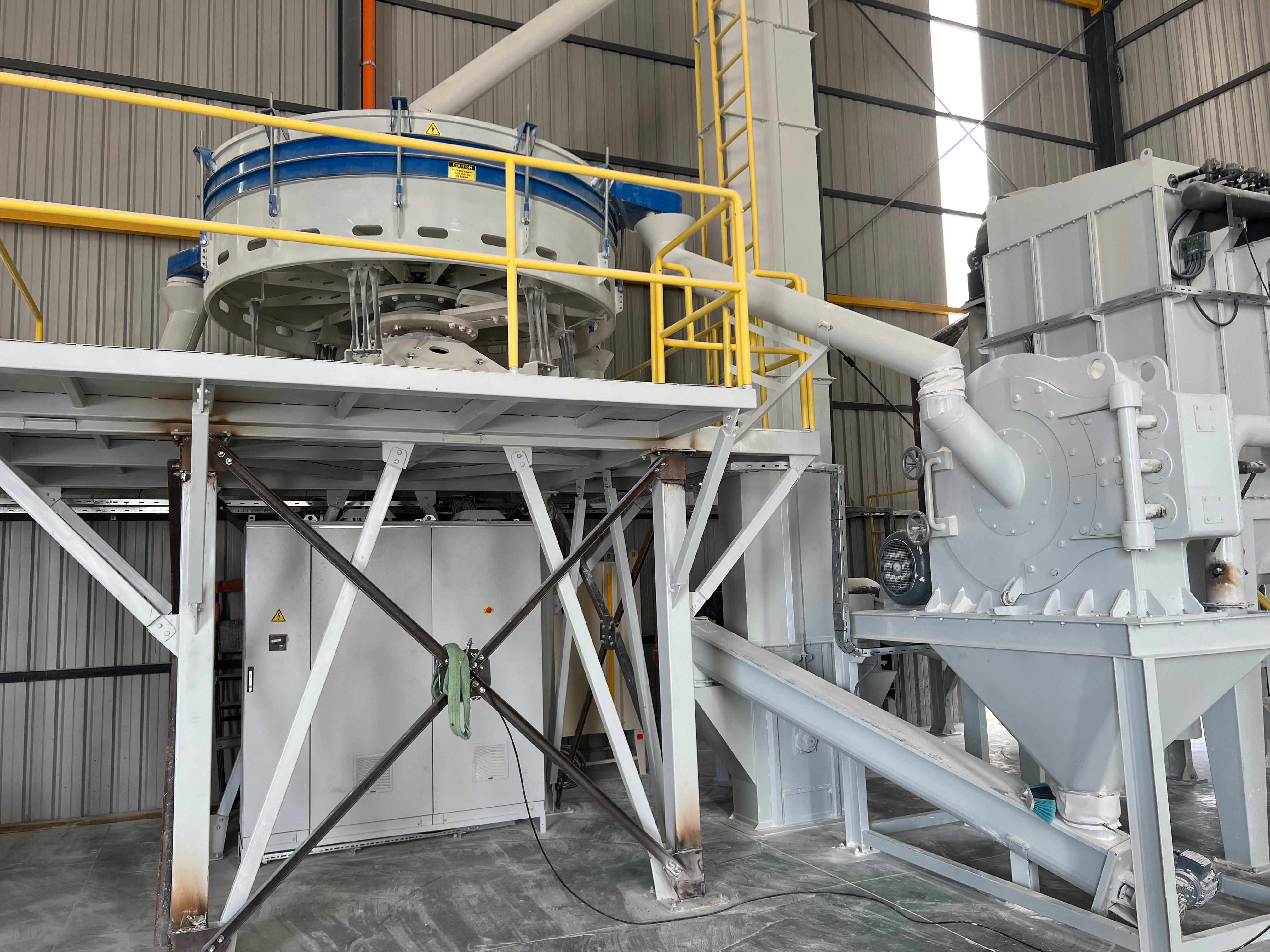

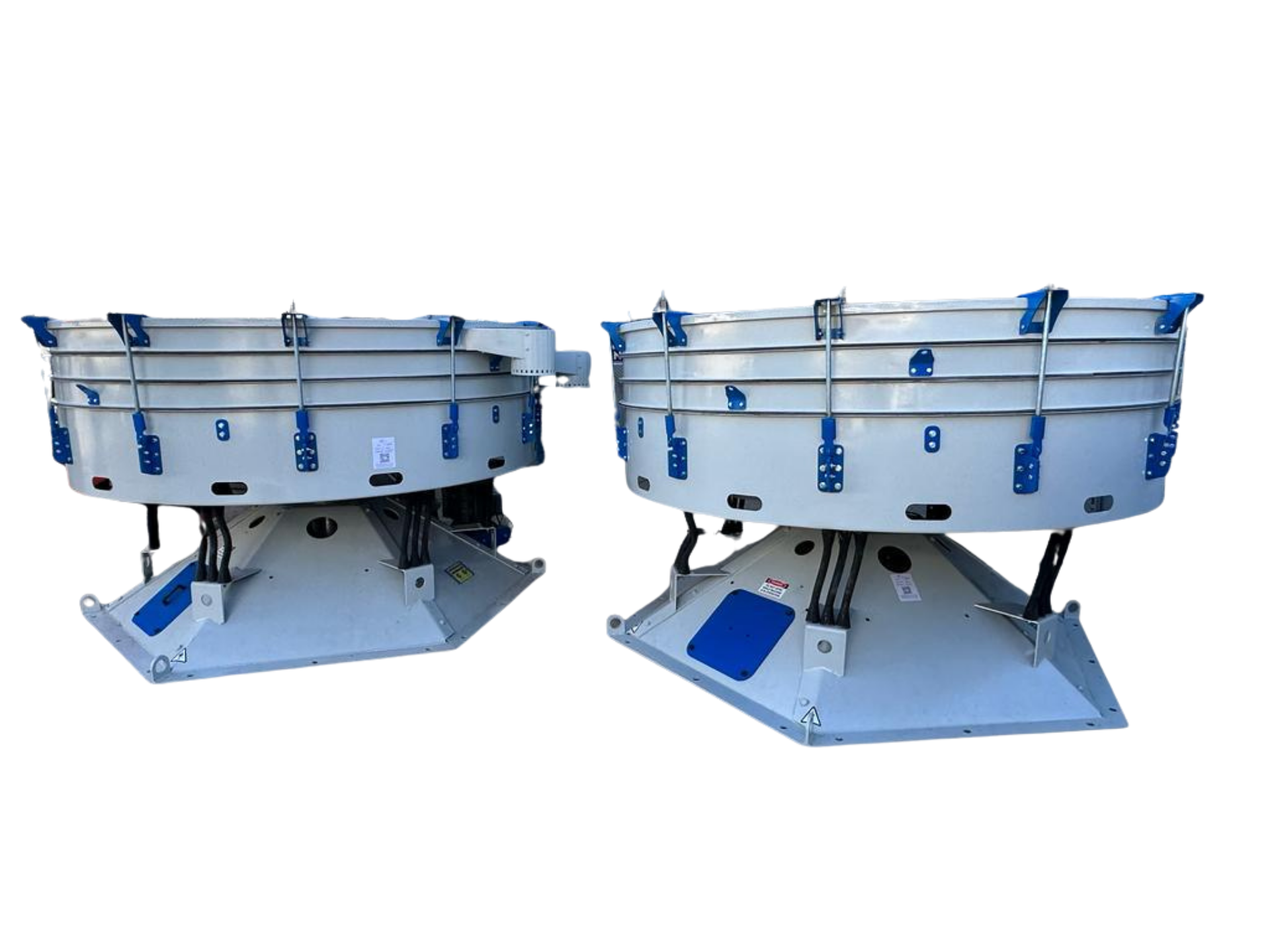

SAY-END Vibrating Screens are designed for separating crushed material after sizing and effectively removing unwanted or oversized pieces.

Advantages of Vibrating Screens:

• Ensures maximum material is separated quickly and efficiently

• Flexible design easily adapts to different project sites, providing ease of use

• Automation allows 24/7 continuous operation

• Increases process efficiency and productivity

• Supports process continuity by increasing screening capacity

Screening is a critical step to reduce material to usable sizes. SAY-END Vibrating Screens also provide significant advantages during the re-sizing process; material passing through the screens reaches the desired dimensions much more easily and quickly in secondary or tertiary crushers.

Screen Wire Width: 2000 mm

Screen Wire Length: 6000 mm

Screening Area: 12 m²

Number of Decks: 2

Screen Frame: Welded construction, bolted to the body

Motor Power: 22 kW

Body Material: 10 mm ST37-A1 steel

Bearing: Cast steel

Bearings Brand: SKF or FAG

Vibration Damping: Steel Helical Springs (60 SiCr7)

Support Structure: Steel structure including platform and guardrail
